01 .Jenkins集成SonarQube

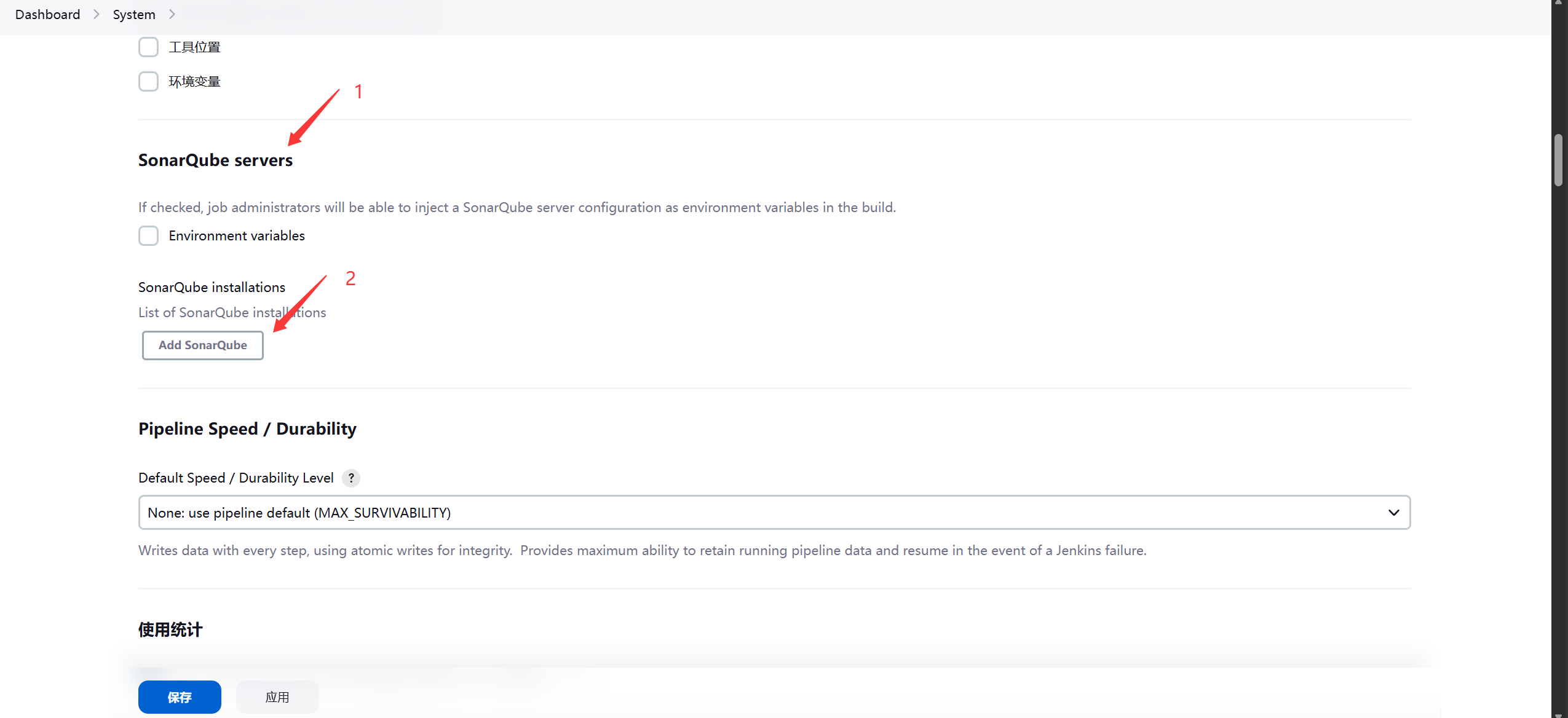

一. jenkins上配置SonarQube服务端

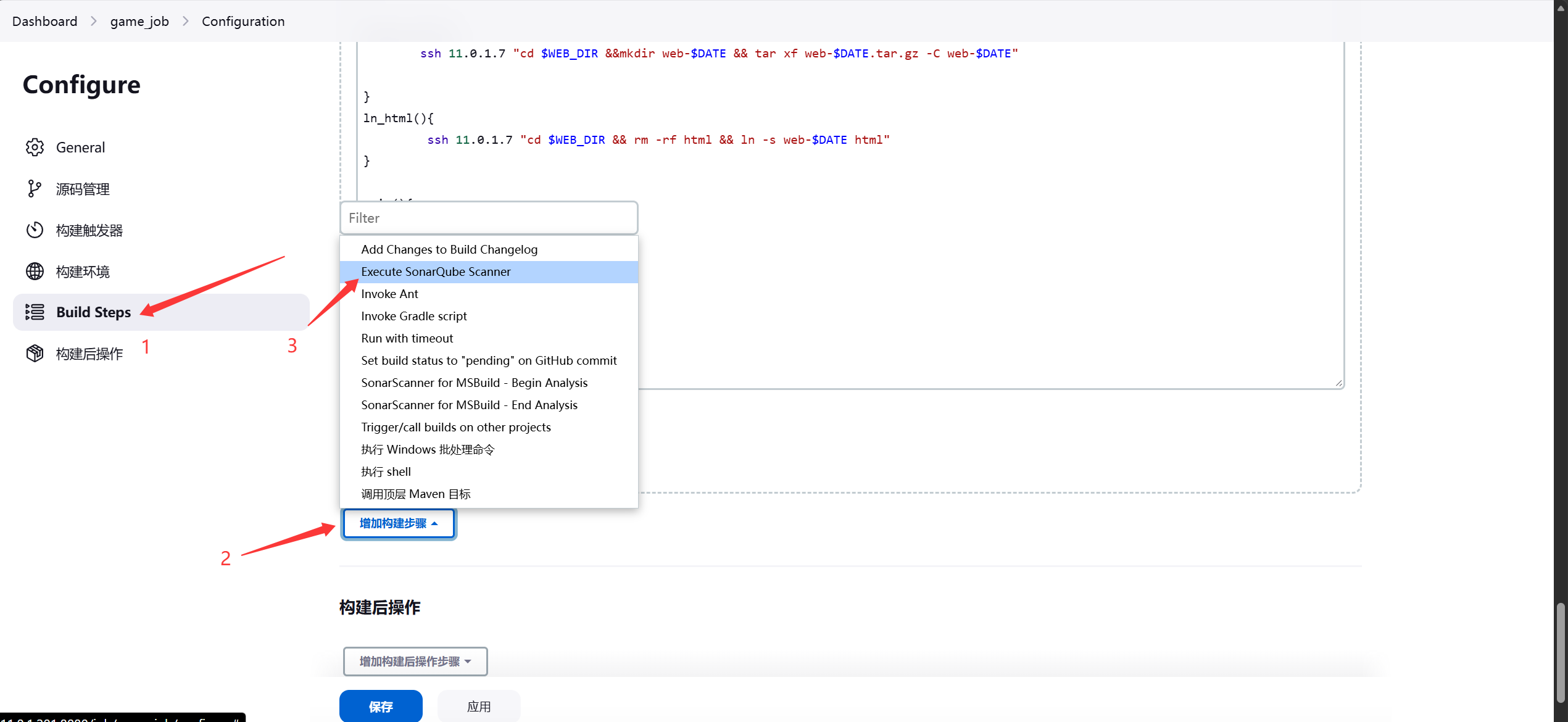

image-20261002171200675

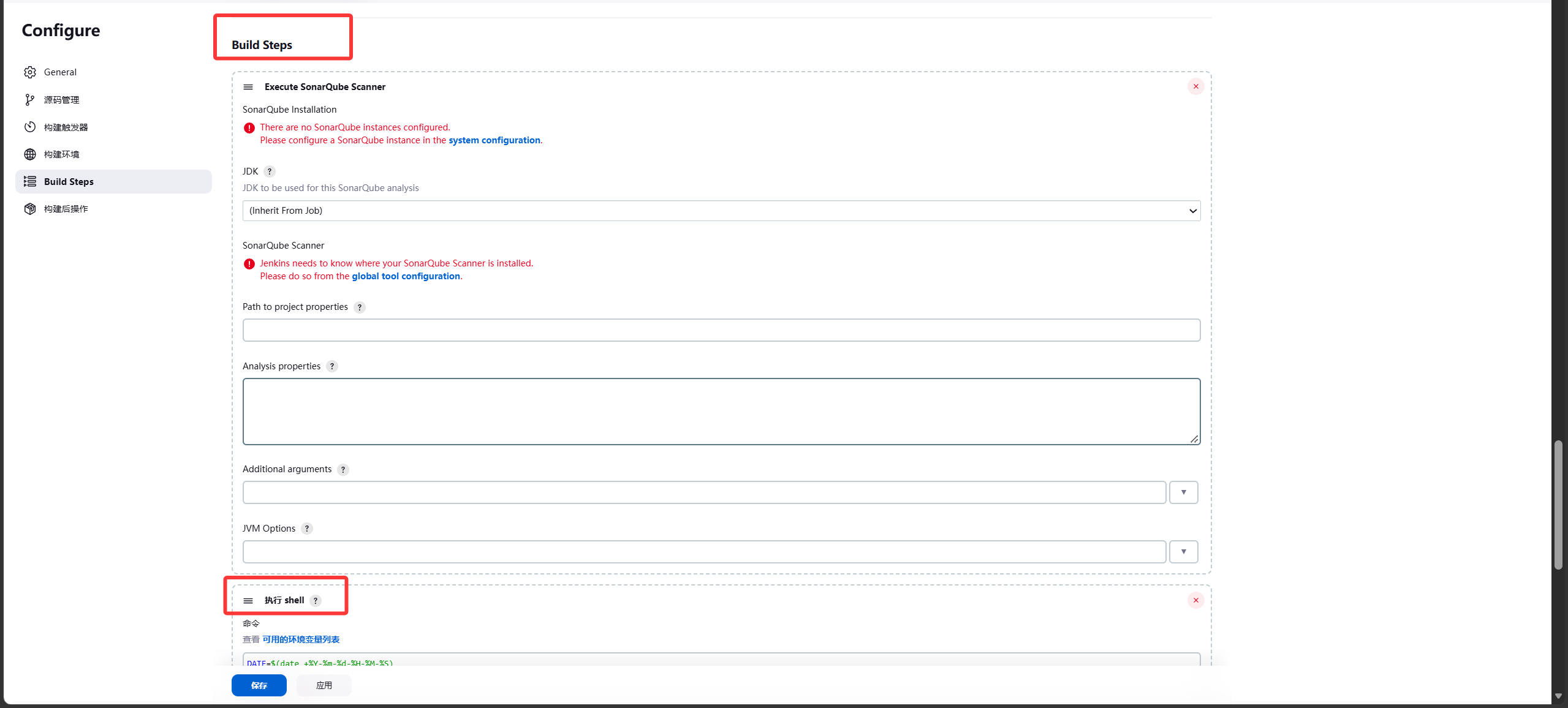

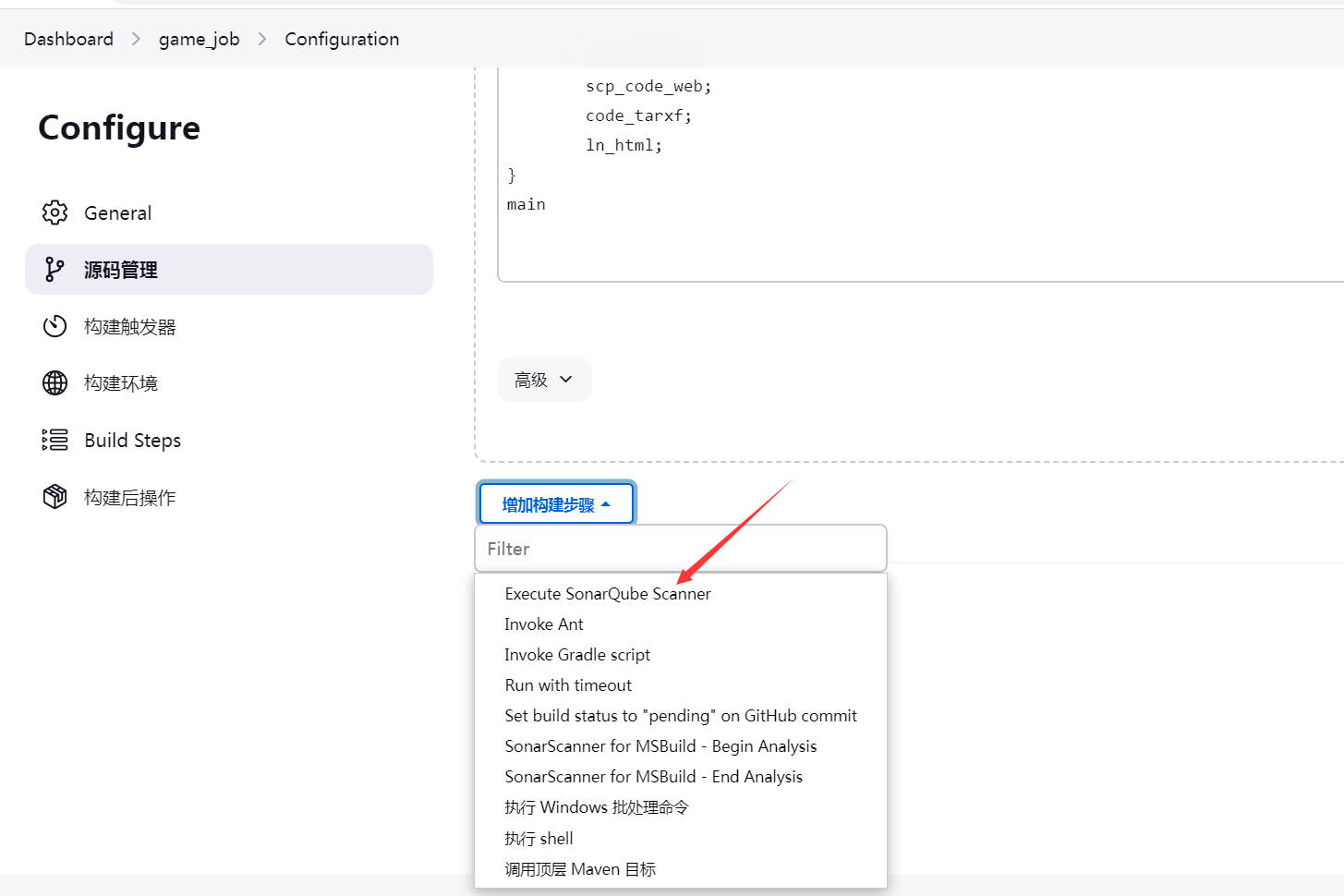

将Build Steps和执行shell调换位置，Build Steps在上面，执行shell在下面

image-20261002171410469

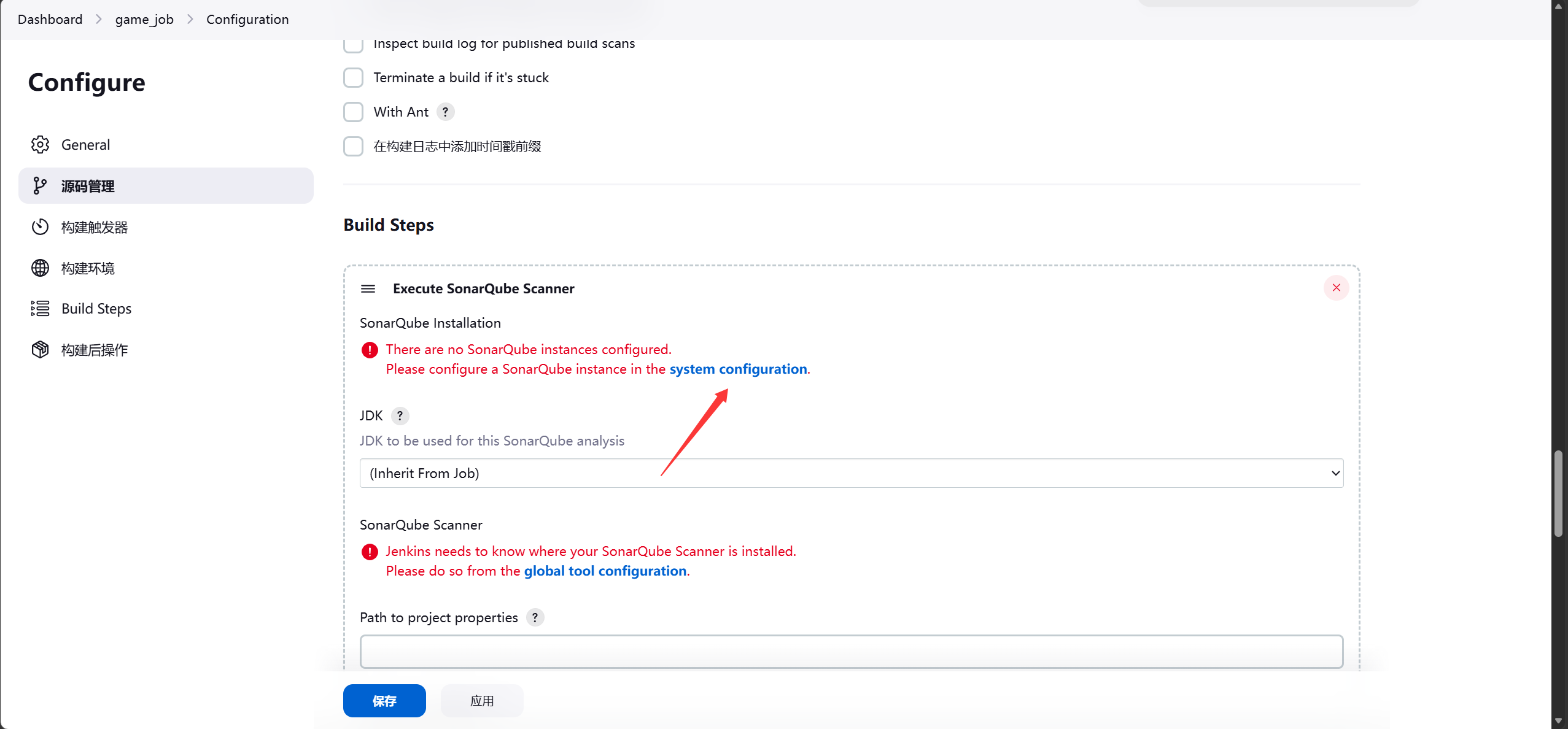

image-20261002171720878

image-20261002171905642

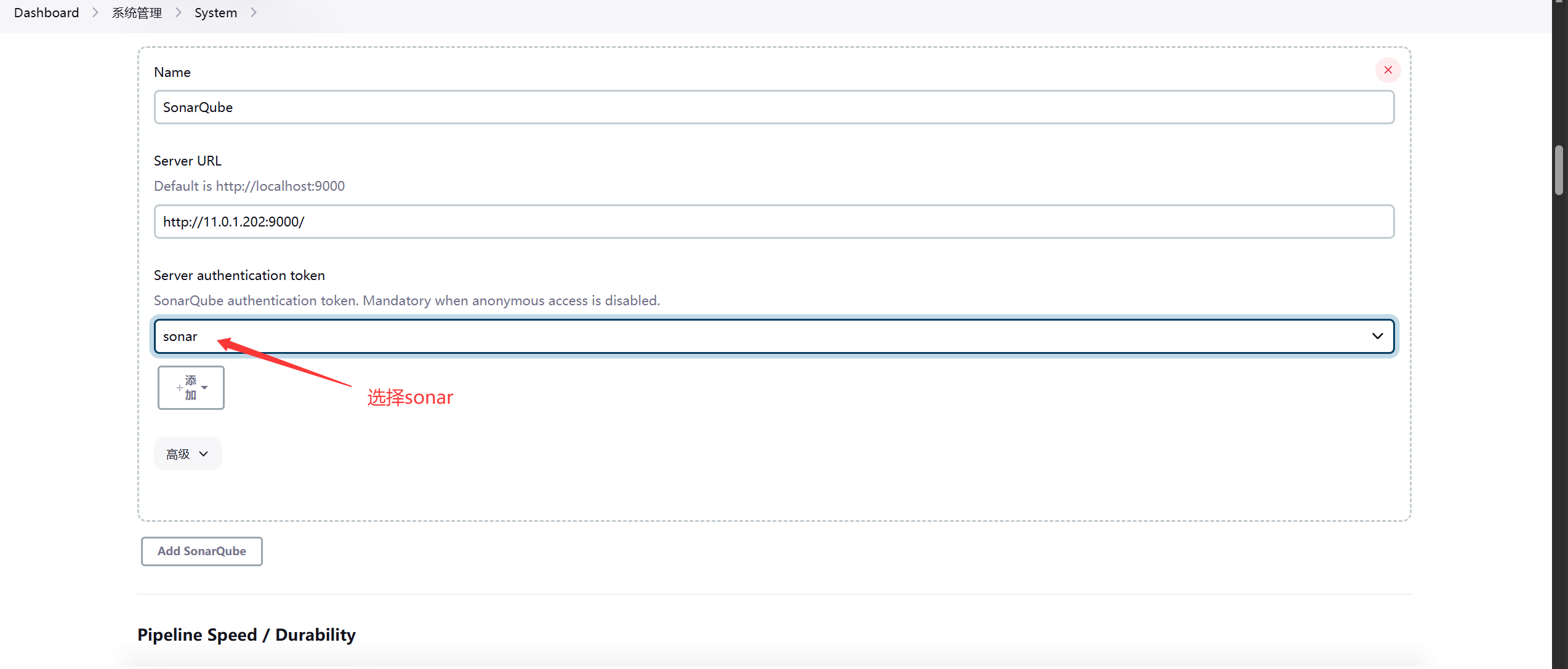

1.Name定义

2.URL添加SonarQube的地址 token添加一个secret text 填写之前安装SonarQube的Token

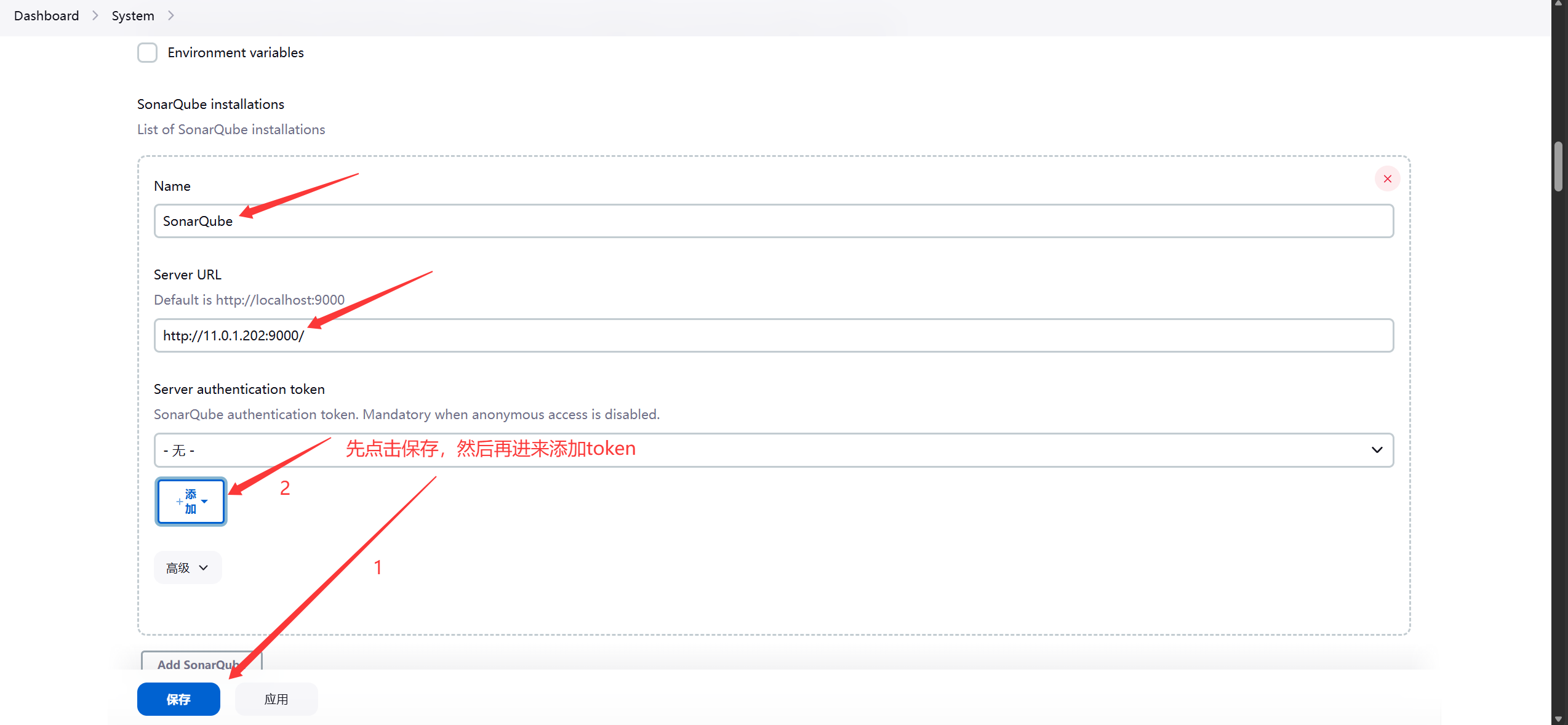

image-20261002172312971

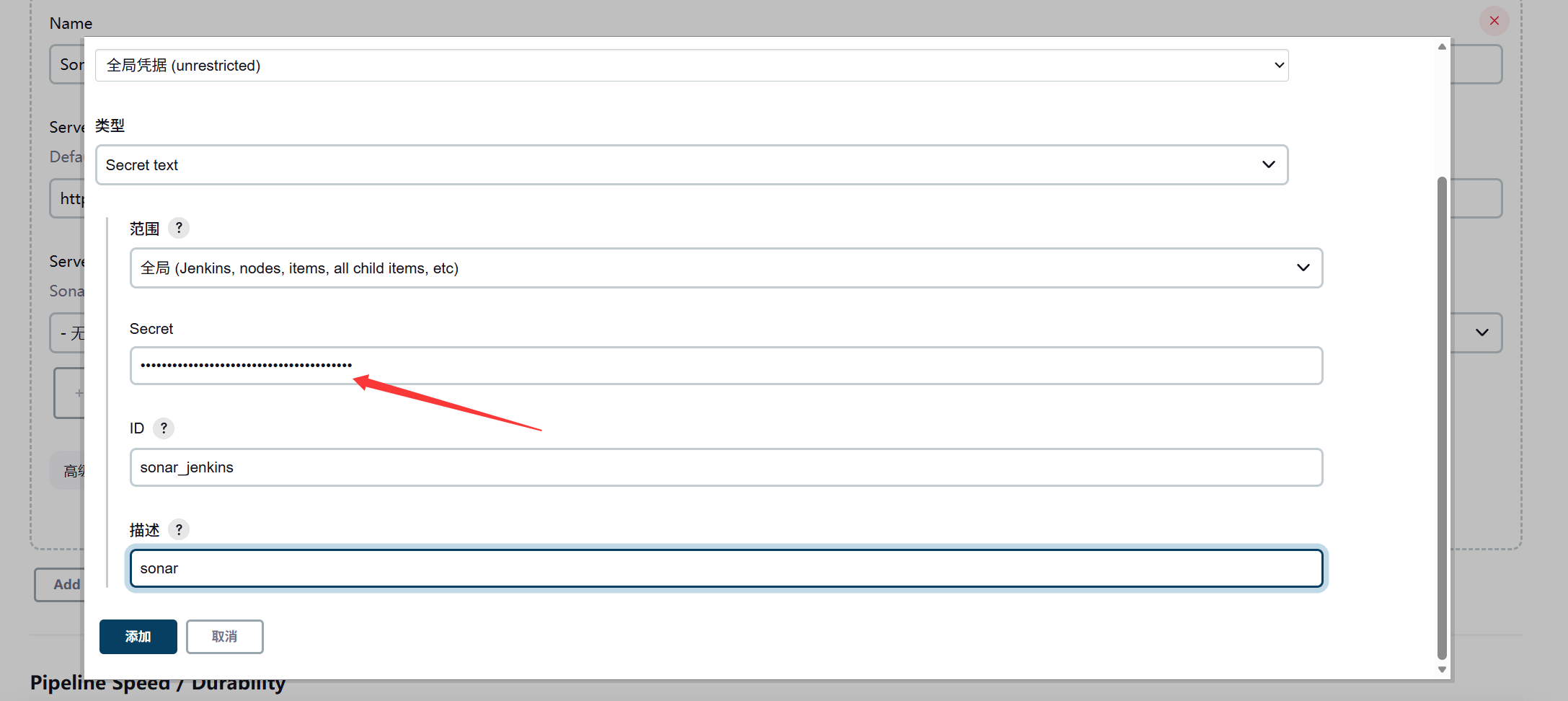

image-20261002172909893

image-20261002173002907

二. Jekins配置sonar客户端的位置

jenkins配置执行sonar-scanner命令的家目录，让jenkins能找到该命令 系统管理->全局工具配置

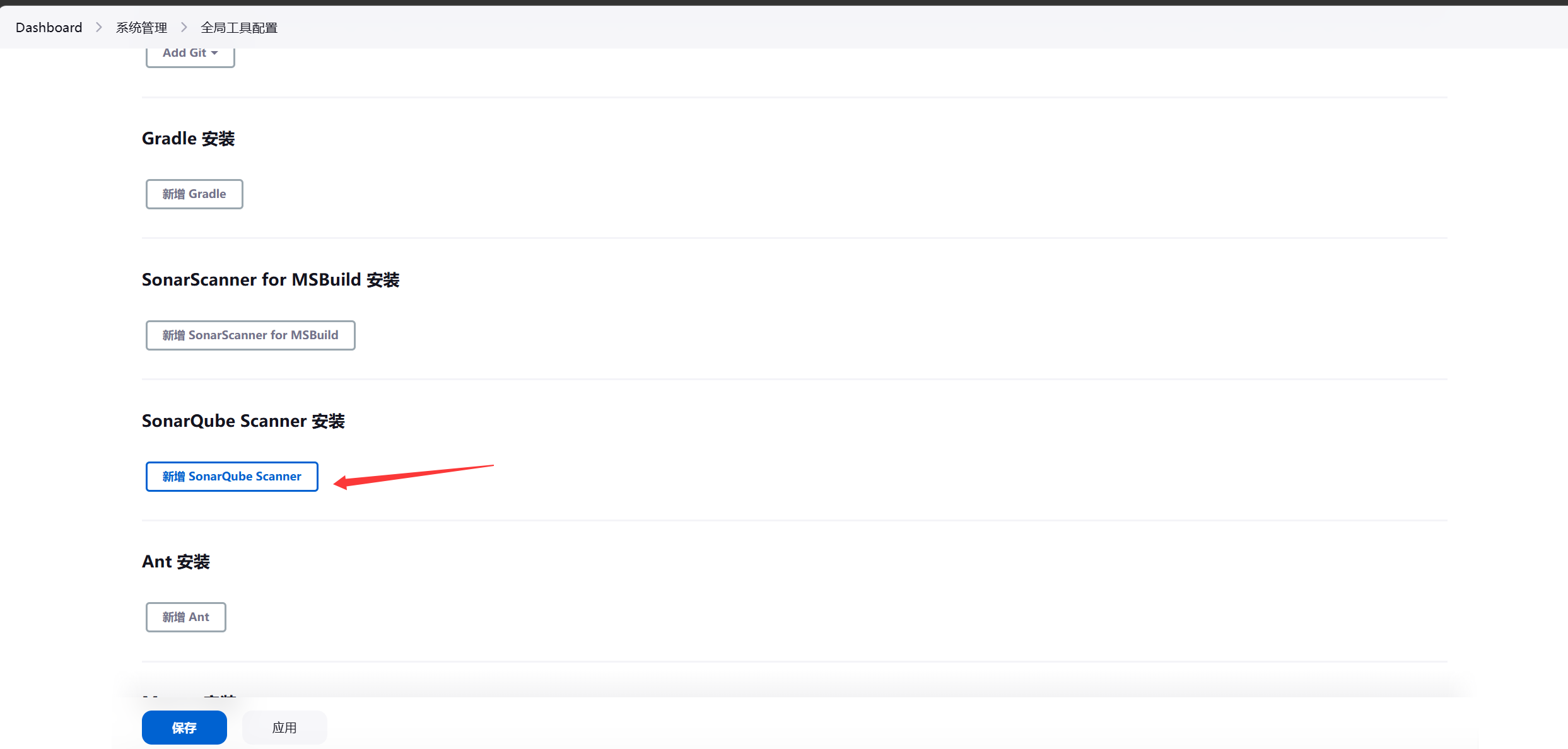

image-20261002173321188

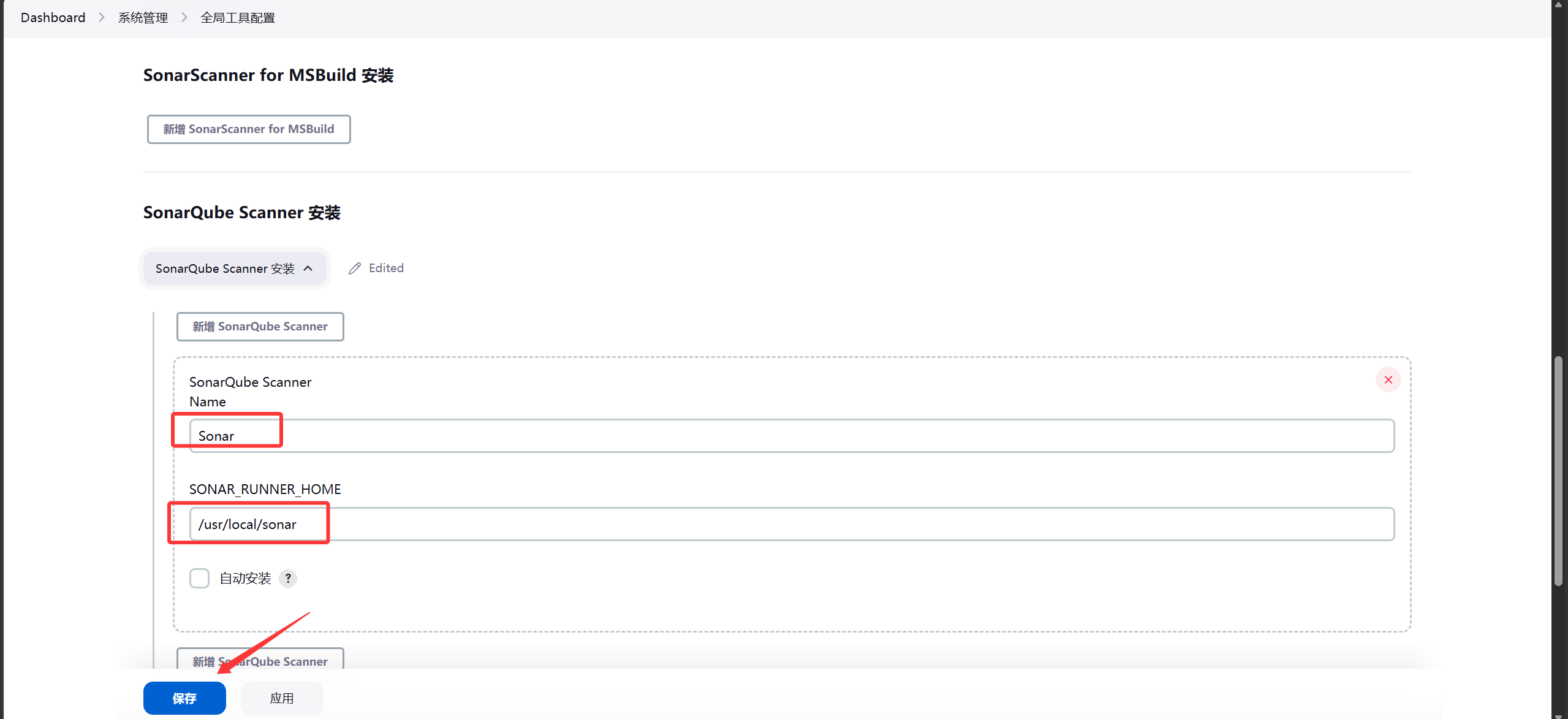

image-20261002174406122

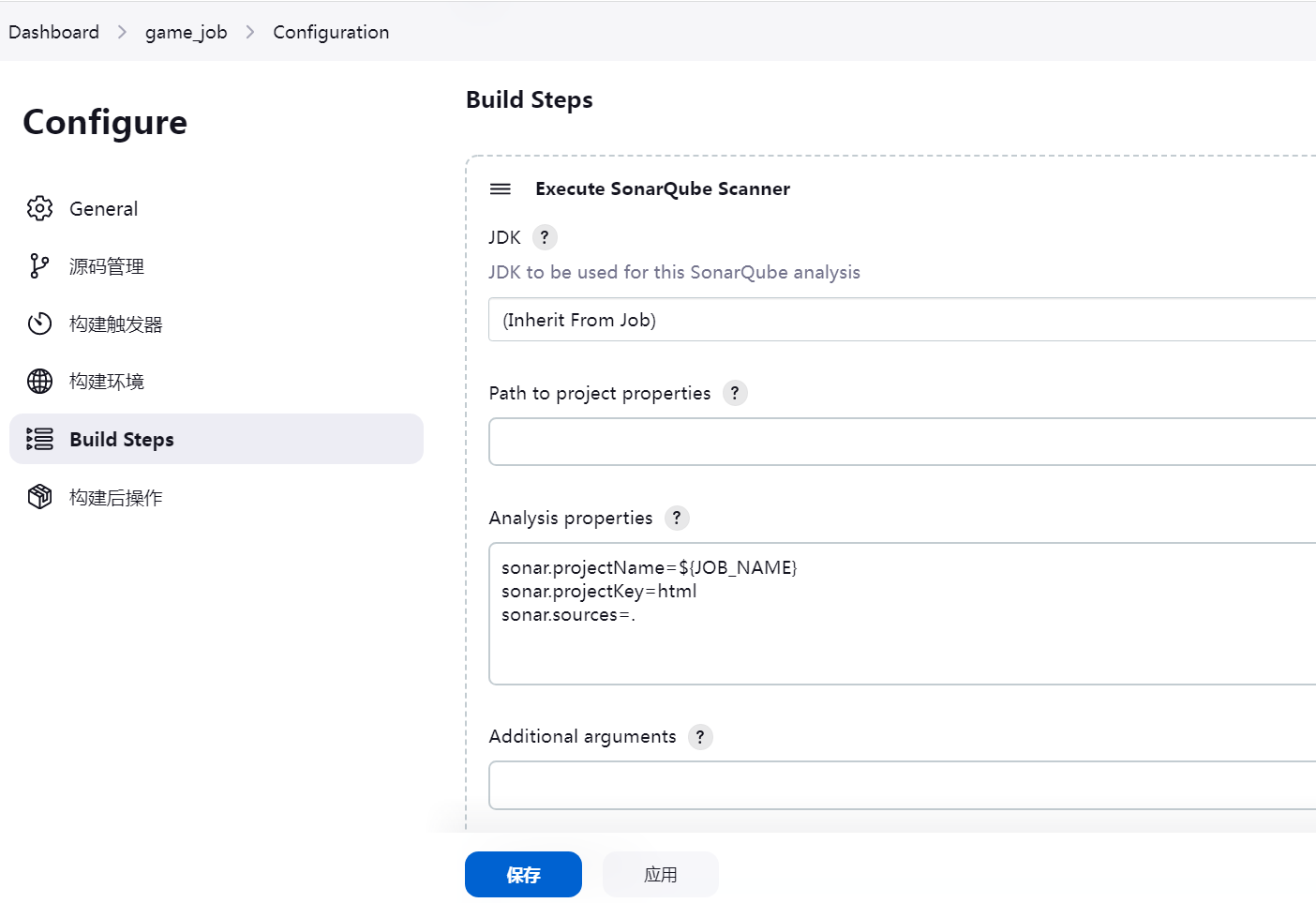

三. 项目中集成SonarQube

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

[root@gitlab game]#vim index.html
....
                    ['魂斗罗v5', 'roms/Contra1(U)30.nes'],
...
[root@gitlab game]#git commit -am "v5"
[main c03f21c] v5
 1 file changed, 1 insertion(+), 1 deletion(-)
[root@gitlab game]#git push -u origin main
Counting objects: 5, done.
Delta compression using up to 2 threads.
Compressing objects: 100% (3/3), done.
Writing objects: 100% (3/3), 273 bytes | 0 bytes/s, done.
Total 3 (delta 2), reused 0 (delta 0)
To git@11.0.1.200:dawn/game.git
   d0cef87..c03f21c  main -> main
Branch main set up to track remote branch main from origin.

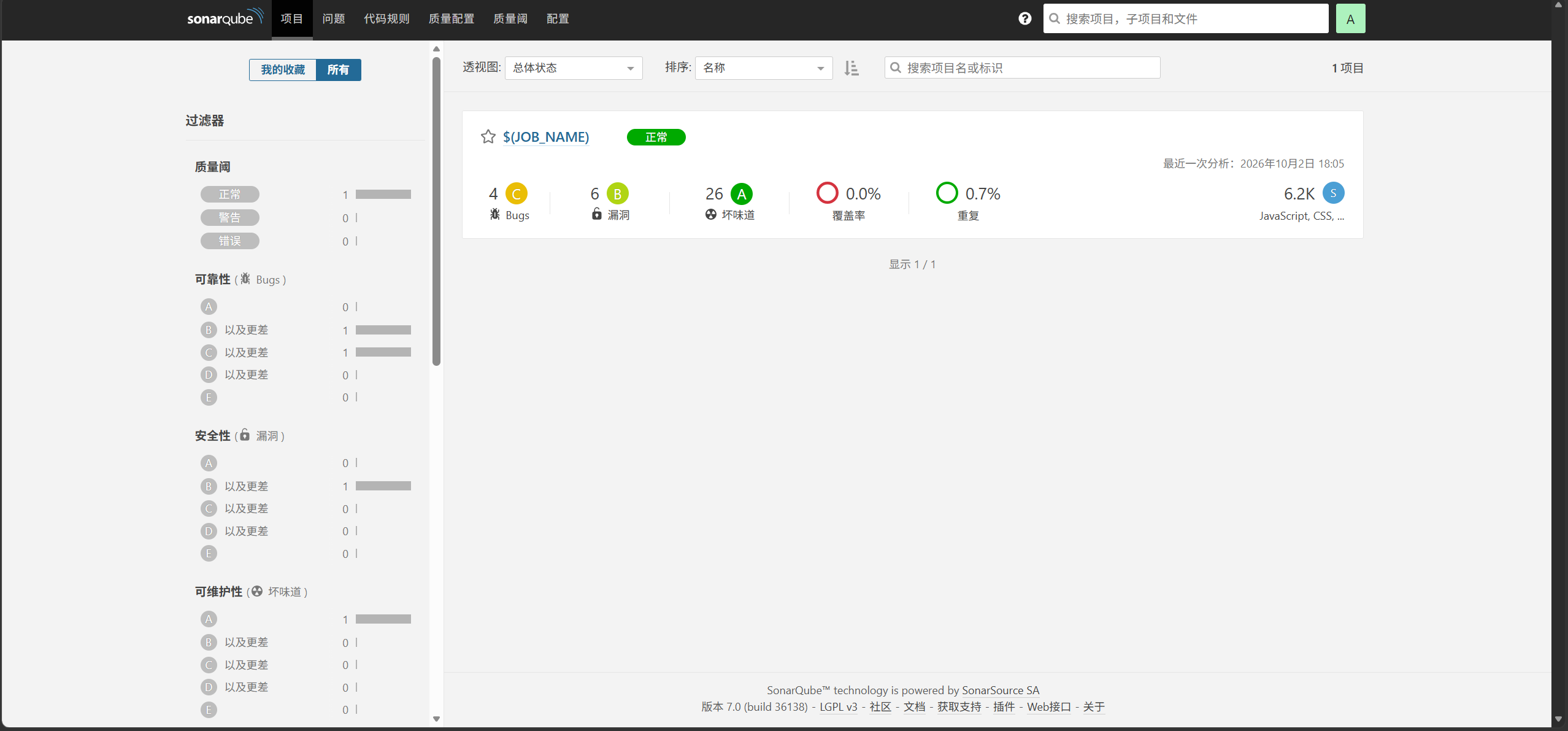

自动推送成功

image-20261002180751968

02. Jenkins集成微信

一. 集成微信介绍

jenkins集成微信，测试环境流程，开发写完代码直接提交到gitlab，自动触发Jenkins执行构建，运行结果可以直接展示在测试平台，每次发版的测试版本信息可以通过Jenkins发送到企业微信通知相关项目人员。

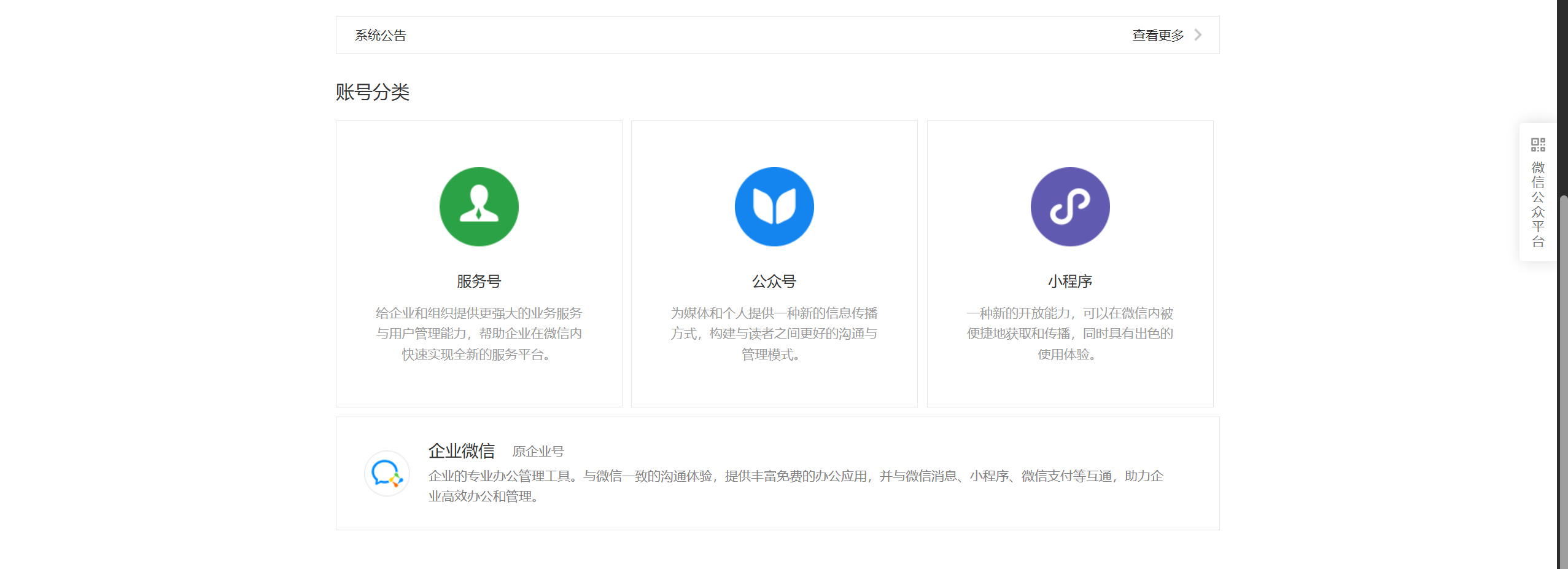

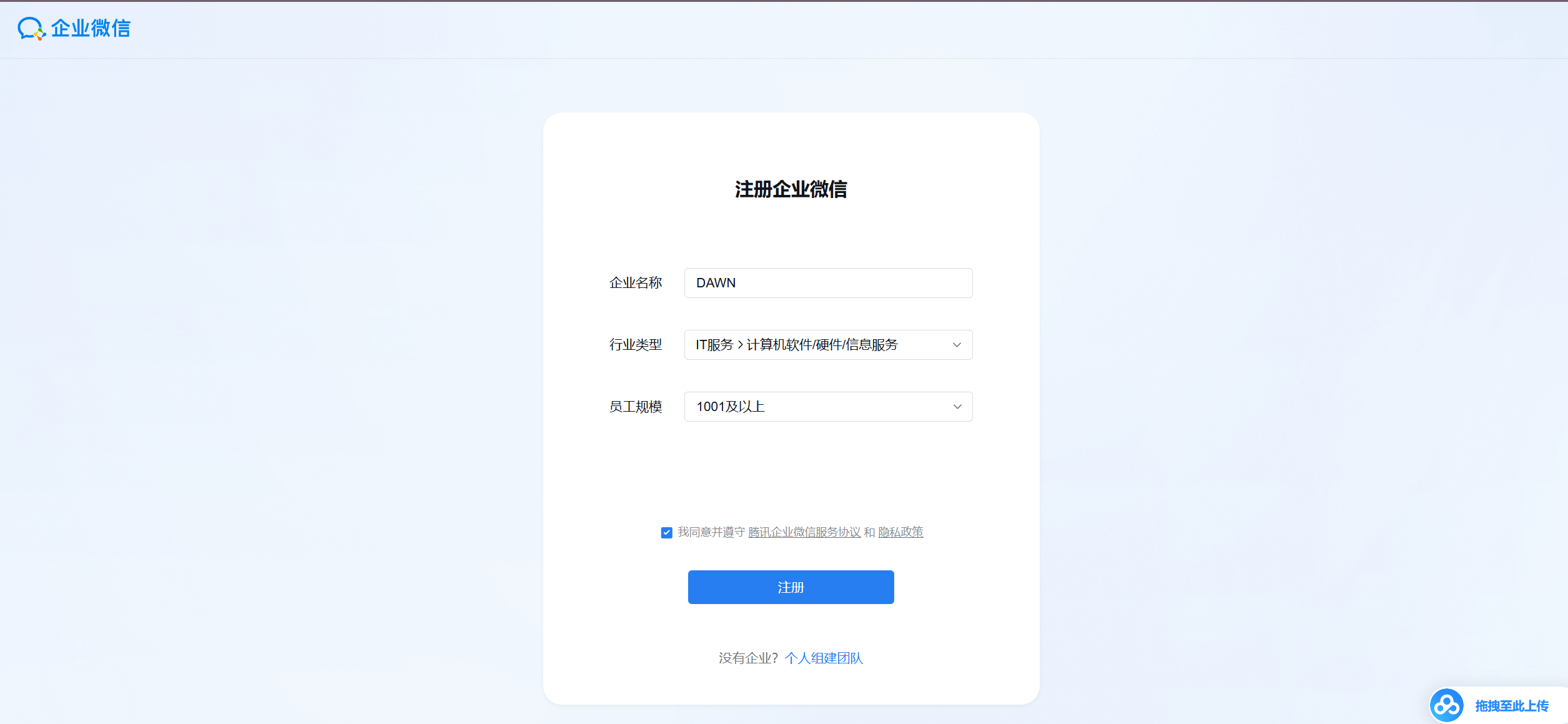

二. 注册企业微信公众号

网址: https://mp.weixin.qq.com/

image-20261002183759363

选择完成后把下面信息进行完善->使用自己微信扫描二维码进行管理后-点注册

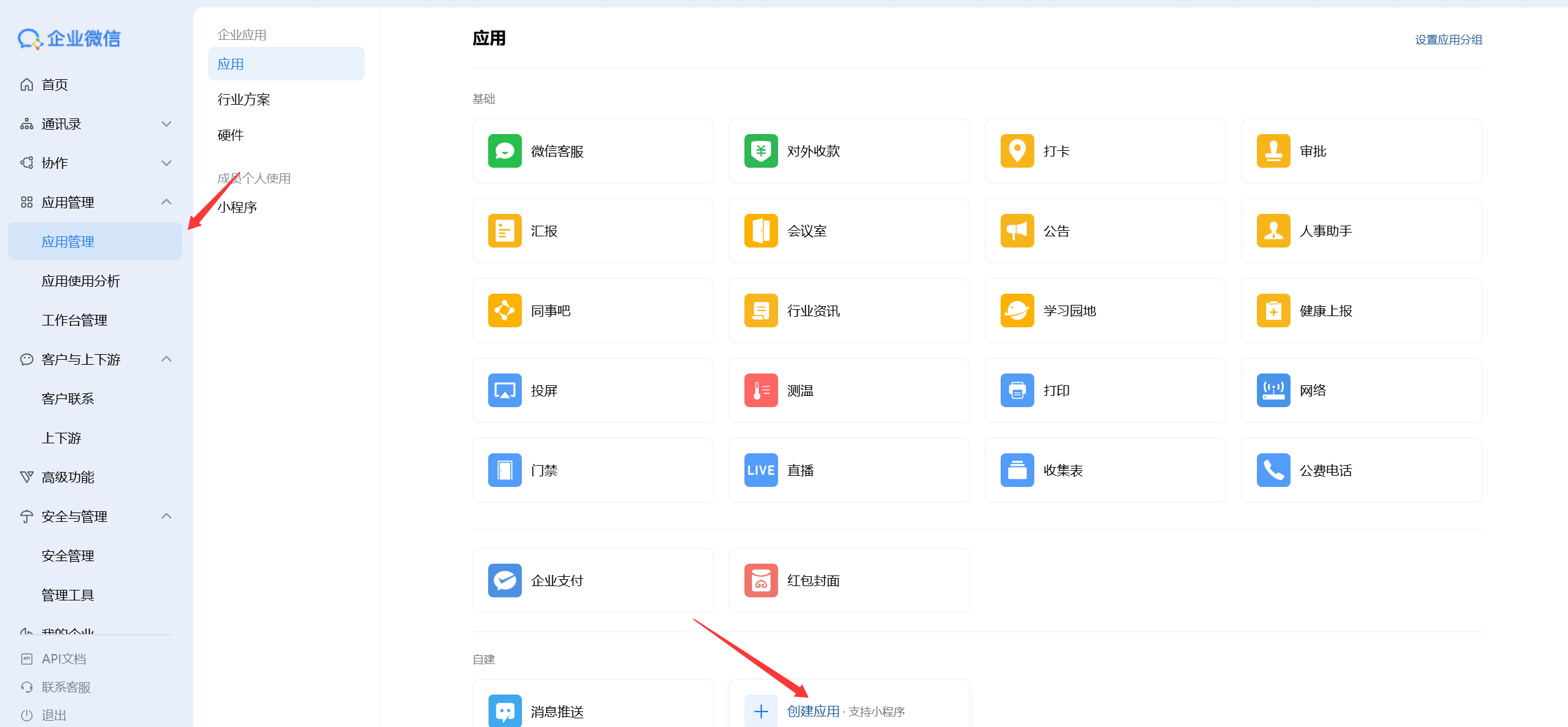

注册成功登陆后点击应用管理->创建应用

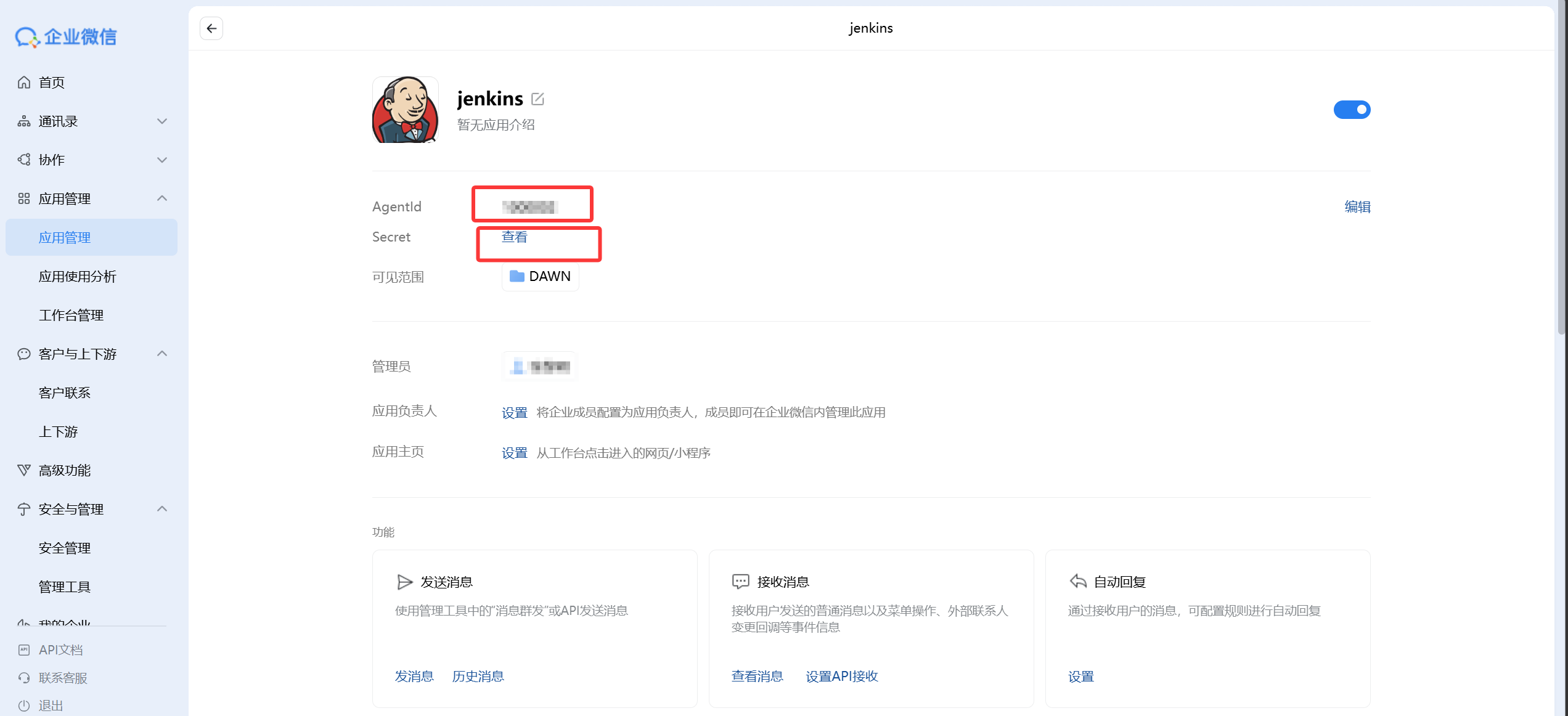

上传一张log->填写应用名称-可见范围->创建应用-保存好agentld和secret写入py脚本

image-20261002184557305

image-20261002185358852

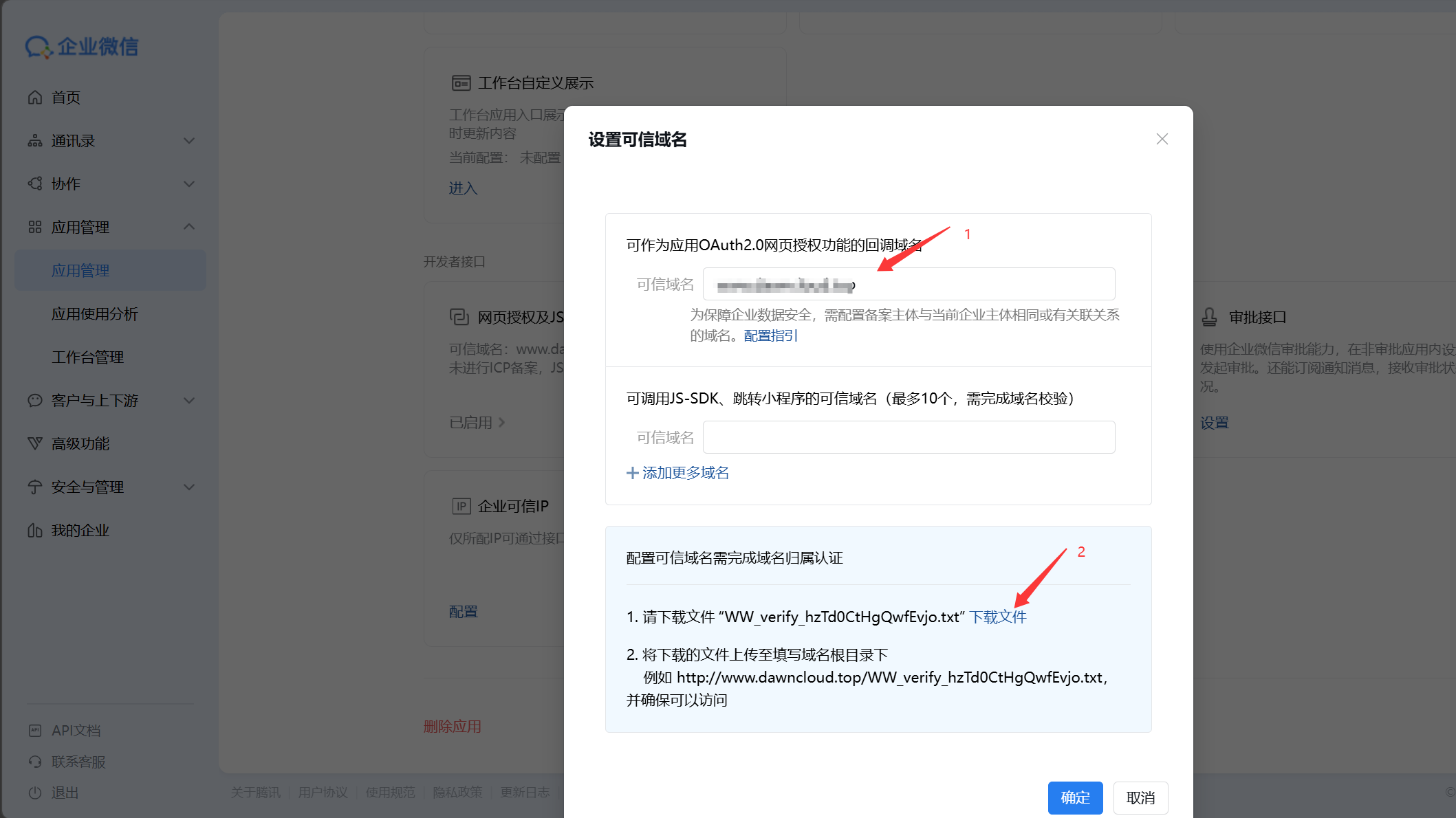

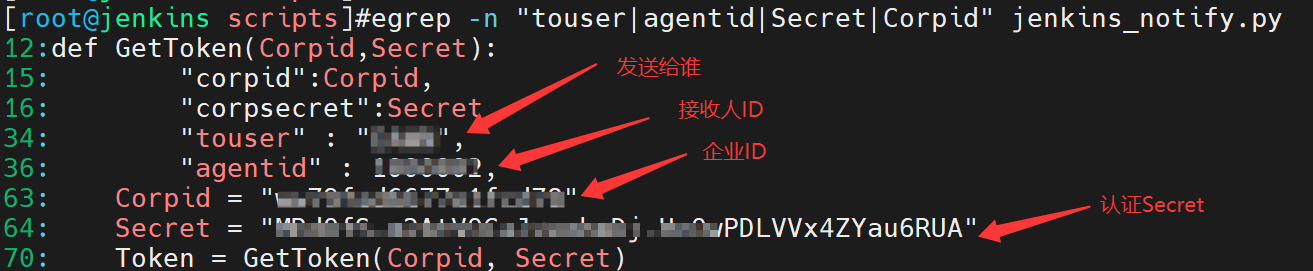

三. 修改py脚本信息

1
2
3
4
5
6

#1. 上传脚本到/server/scripts
[root@jenkins ~]# mkdir -p /server/scripts
[root@jenkins ~]# cd /server/scripts
[root@jenkins scripts]#ll
total 4
-rw-r--r-- 1 root root 2008 Oct  2 18:59 jenkins_notify.py

image-20261002191311651

image-20261009135456446

image-20261009135635405

四. 本地执行脚本测试

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

[root@jenkins ~]#yum -y install python-pip
[root@jenkins ~]#wget https://bootstrap.pypa.io/pip/2.7/get-pip.py
[root@jenkins ~]#python get-pip.py
[root@jenkins ~]#pip2.7 install requests
[root@jenkins scripts]#python jenkins_notify.py 11 /etc/hosts game
[变更日志] : 127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4

[变更日志] : 127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
::1         localhost localhost.localdomain localhost6 localhost6.localdomain6

{"errcode":0,"errmsg":"ok","msgid":"cpB2NxqCi8uaKeFHyR1iukyQoHK88hteL3ZQ36qc1J-s6dxwr9nVl5U1rnbiYNHHMEhpIkDaLTfEWfIwu7JVlRs_bPedgINU2lOaYHsoih9vWaXL-BAMnxRfc6wD5f19"}
[root@jenkins scripts]#python jenkins_notify.py 11.0.1.201 /etc/hosts game
[变更日志] : 127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4

[变更日志] : 127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
::1         localhost localhost.localdomain localhost6 localhost6.localdomain6

{"errcode":0,"errmsg":"ok","msgid":"cpB2NxqCi8uaKeFHyR1iukyQoHK88hteL3ZQ36qc1J_hJhqCw0rb1QjAxDrJIwd1leNF0jHEWgispRPFbstm-I_VCKgfsRHM266lQO-Mvzg0XD0JGP2Vi-cc9yPN98Fd"}

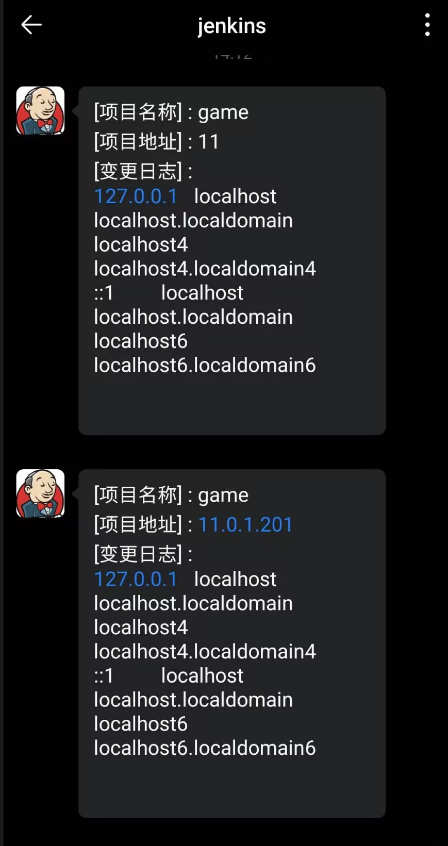

image-20261009141459785

五. 集成到Jenkins

安装第三方插件:

1.由于jenkins没有官网的插件来完成此功能，所以我们只能用网络上一些开源的插件

github下载代码 https://github.com/daniel-beck/changelog-environment-plugin 解压到某个目录-> 进入目录执行以下操作 cd 到 changelog-environment-plugin-master 下，执行 mvn verify 时间较长，会在changelog-environment-plugin-master/target/下有个changelog-environment.hpi文件，上传到jenkins即可使用

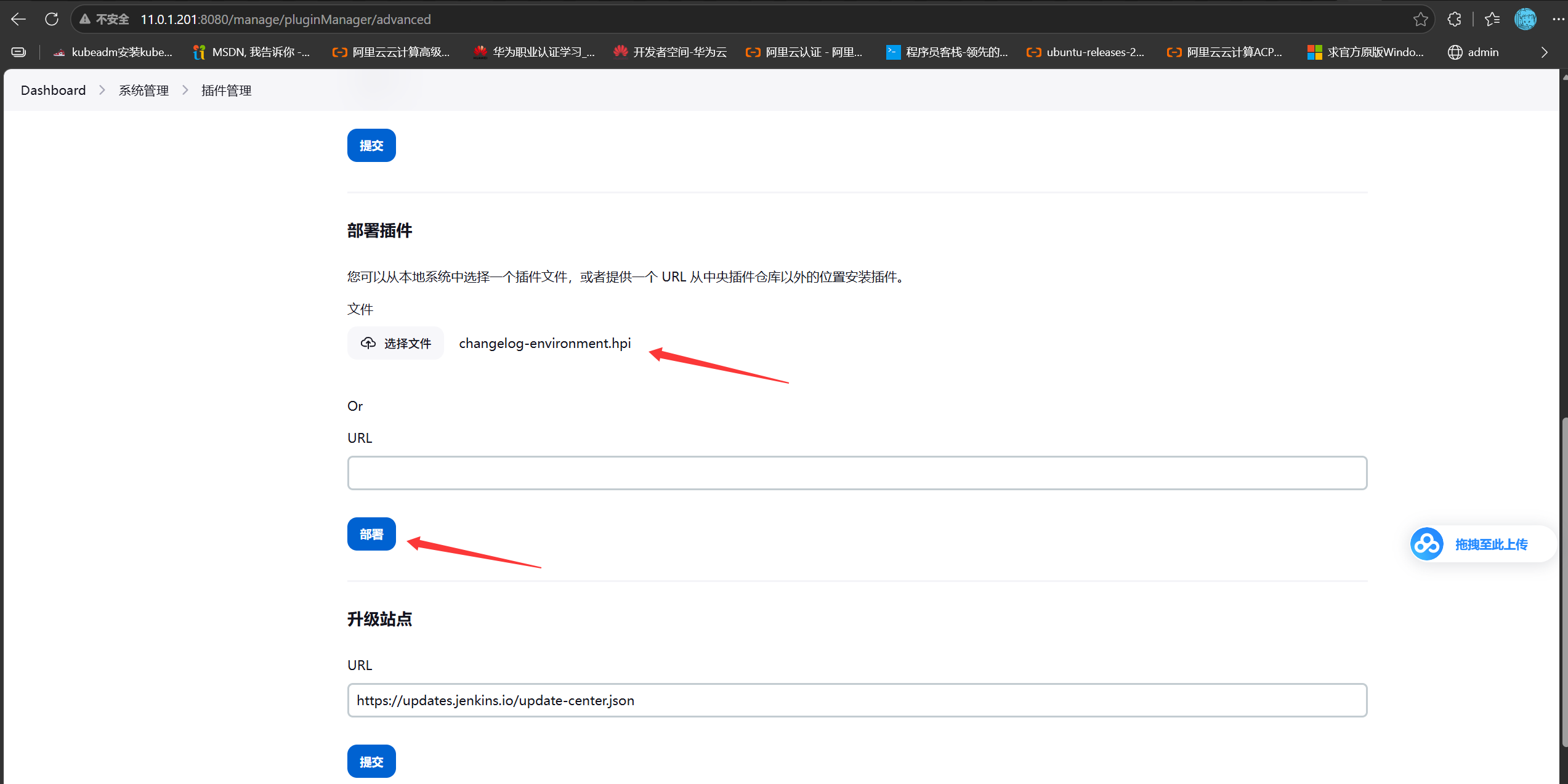

2.安装插件

image-20261009144119185

3.重启Jenkins服务

1

[root@jenkins scripts]#systemctl restart jenkins

4.集成到jenkins

进入到项目:

1
2

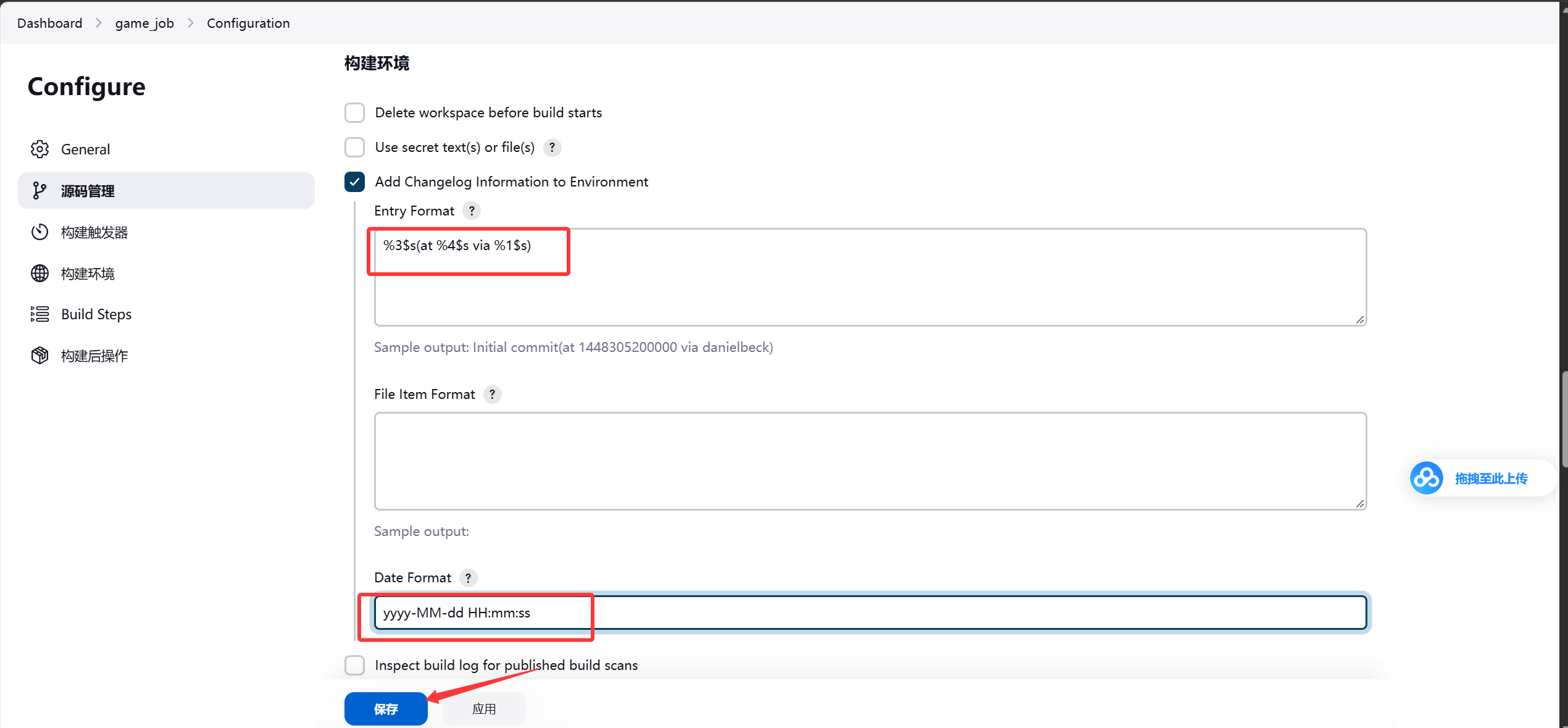

Entry Format中添加 %3$s(at %4$s via %1$s)，参数分别为ChangeLog内容，时间，提交人。
Date Format中添加 yyyy-MM-dd HH:mm:ss 就是时间格式。

image-20261009144842556

1
2
3
4
5

复制执行命令
echo "==========Start Notify=============="
echo ${SCM_CHANGELOG} > /tmp/${JOB_NAME}_change.log
python /server/scripts/jenkins_notify.py ${BUILD_URL} /tmp/${JOB_NAME}_change.log ${JOB_NAME}
rm -fv /tmp/${JOB_NAME}_change.log

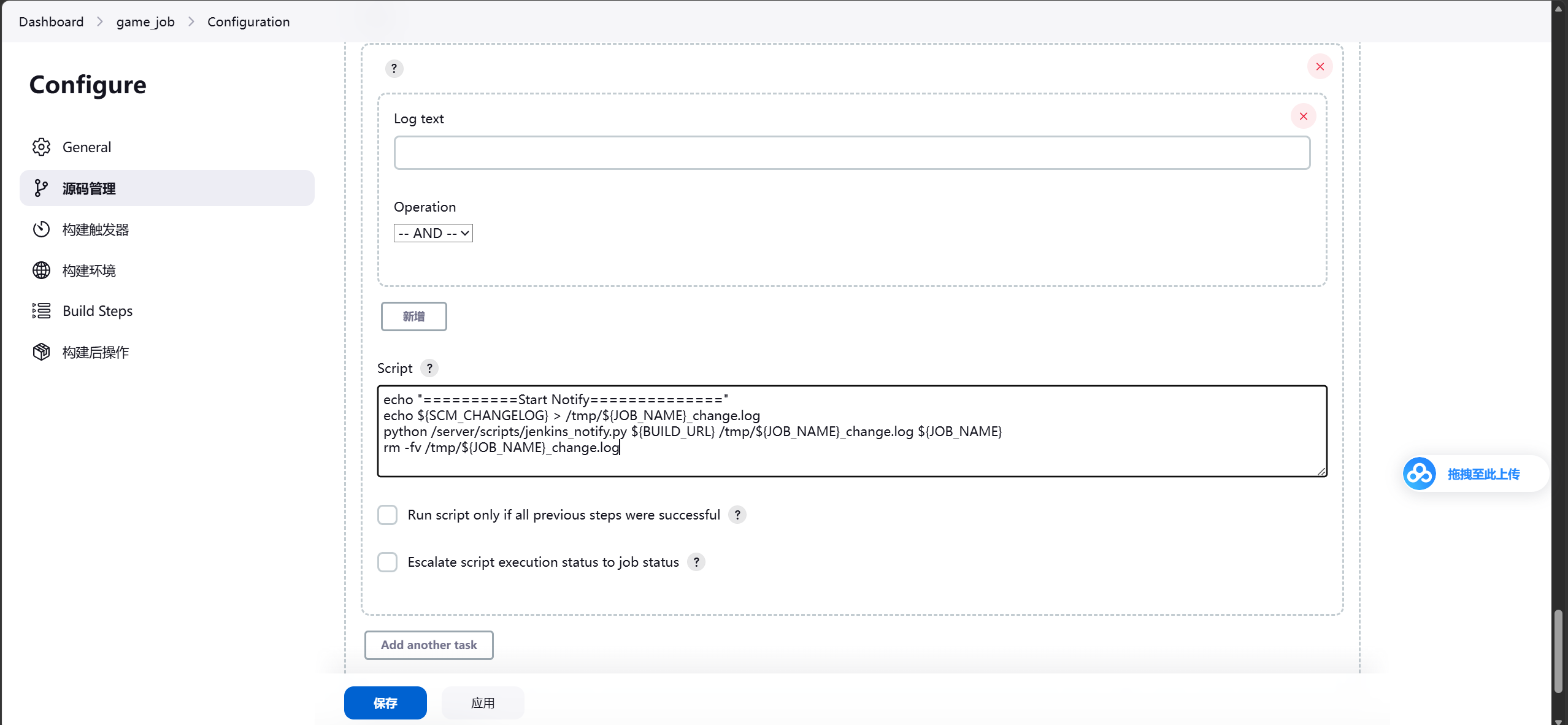

image-20261009145238717

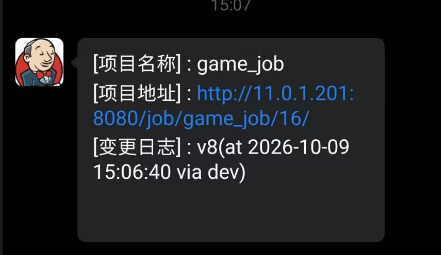

5.测试效果

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

[root@gitlab game]#git add .
[root@gitlab game]#git commit -am "v8"
[main 77d13e2] v8
 1 file changed, 1 insertion(+), 1 deletion(-)
[root@gitlab game]#git push -u origin main
Counting objects: 5, done.
Delta compression using up to 2 threads.
Compressing objects: 100% (3/3), done.
Writing objects: 100% (3/3), 270 bytes | 0 bytes/s, done.
Total 3 (delta 2), reused 0 (delta 0)
To git@11.0.1.200:dawn/game.git
   bb52c00..77d13e2  main -> main
Branch main set up to track remote branch main from origin.

image-20261009150956394
